Important: Front Brake Sizes
Vehicles can be fitted with two different size front brake systems. The correct parts depend on the vehicle's option code:
- 1ZF: vehicles use a front brake disc which measures 280x22mm
- 1ZE: vehicles use a front brake disc which measures 288x25mm
Please check your vehicle’s option code, or physical brake size carefully before ordering.

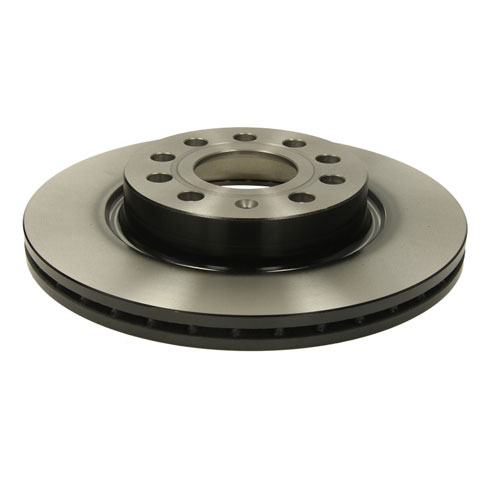

Hella 8DD355109-561 Brake Disc, Front
for vehicles with option code 1ZF only
- 280x22mm
- Replaces OE Ref: 1K0615301AK
Hella 8DD355109-581 Brake Disc, Front
for vehicles with option code 1ZE only
- 288x25mm
- Replaces OE Ref: 1K0615301T
Hella 8DB355008-551 Brake Pad Set, Front
for vehicles with option code 1ZF only
- for 280x22mm
- Replaces OE Ref: 1K0698151F
Hella 8DB355010-581 Brake Pad Set, Front
for vehicles with option code 1ZE only
- for 288x25mm
- Replaces OE Ref: 3C0698151J
Important: Rear Brake Sizes
Vehicles can be fitted with two different size rear brake systems. The correct parts depend on the vehicle's option code:
- 1ZF & 2E2: vehicles with 280x22m front brakes with 15" wheels, use a rear brake disc which measures 253x10mm
- 1ZF & 2E3: vehicles with 280x22m front brakes with 16" wheels, use a rear brake disc which measures 272x10mm
- 1ZE: vehicles with 288x25m front brakes, use a rear brake disc which measures 272x10mm
Please check your vehicle’s option code, or physical brake size carefully before ordering.
Hella 8DD355109-601 Brake Disc, Rear
for vehicles with option codes 1ZF & 2E2 only
- 253x10mm
- Replaces OE Ref: 1K0615601AB
Hella 8DD355116-971 Brake Disc, Rear
for vehicles with option codes 1ZF & 2E3 only
for vehicles with option code 1ZE only
- 272x10mm
- Replaces OE Ref: 1K0615601AA
Hella 8DB355018-111 Brake Pad Set, Rear
for vehicles with option codes 1ZF & 2E2 only
- for 253x10mm
- Replaces OE Ref: 1K0698451J
Hella 8DB355014-021 Brake Pad Set, Rear
for vehicles with option codes 1ZF & 2E3 only
for vehicles with option code 1ZE only
- for 272x10mm
- Replaces OE Ref: 2K5698451
