Important: Front Brake Sizes
Vehicles can be fitted with two different size front brake systems. The correct parts depend on the vehicle's option code:
- 1ZF: vehicles use a front brake disc which measures 280x22mm
- 1ZE: vehicles use a front brake disc which measures 288x25mm
Please check your vehicle’s option code, or physical brake size carefully before ordering.
Hella 8AN355789-111 Brake Caliper, Front Left
for vehicles with option code 1ZF only
- for vehicles with 280x22mm front brakes
- Replaces OE Ref: 1K0615123D
Hella 8AN355789-121 Brake Caliper, Front Right
for vehicles with option code 1ZF only
- for vehicles with 280x22mm front brakes
- Replaces OE Ref: 1K0615124D
Hella 8AN355789-171 Brake Caliper, Front Left
for vehicles with option code 1ZE only
- for vehicles with 288x25mm front brakes
- Replaces OE Ref: 1K0615123E
Hella 8AN355789-181 Brake Caliper, Front Right
for vehicles with option code 1ZE only
- for vehicles with 288x25mm front brakes
- Replaces OE Ref: 1K0615124E
Important: Rear Brake Sizes
Vehicles can be fitted with two different size rear brake systems. The correct parts depend on the vehicle's option code:
- 1ZF & 2E2: vehicles with 280x22m front brakes with 15" wheels, use a rear brake disc which measures 253x10mm
- 1ZF & 2E3: vehicles with 280x22m front brakes with 16" wheels, use a rear brake disc which measures 272x10mm
- 1ZE: vehicles with 288x25m front brakes, use a rear brake disc which measures 272x10mm
Please check your vehicle’s option code, or physical brake size carefully before ordering.

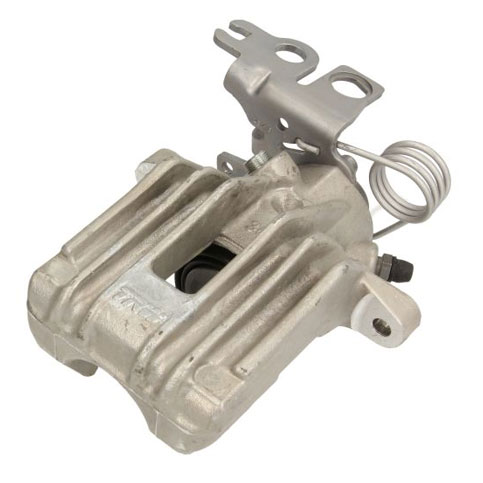

TRW BHN953 Brake Caliper, Rear Left
for vehicles with option codes 1ZF & 2E2 only
- for vehicles with 253x10mm rear brakes
- Replaces OE Ref: 2K0615423C

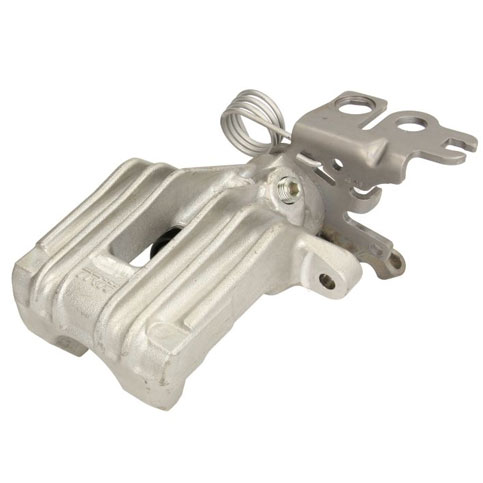

TRW BHN954 Brake Caliper, Rear Right
for vehicles with option codes 1ZF & 2E2 only
- for vehicles with 253x10mm rear brakes
- Replaces OE Ref: 2K0615424C
Hella 8AN355799-091 Brake Caliper, Rear Left
for vehicles with option codes 1ZF & 2E3 only
for vehicles with option code 1ZE only
- for vehicles with 272x10mm rear brakes
- Replaces OE Ref: 2K5615423
Hella 8AN355799-101 Brake Caliper, Rear Right
for vehicles with option codes 1ZF & 2E3 only
for vehicles with option code 1ZE only
- for vehicles with 272x10mm rear brakes
- Replaces OE Ref: 2K5615424
