Hella 8AH355468-581 Brake Hose, Front
for T32 only (vehicles with option code 0WR)
- 600mm long
- Replaces OE Ref: 7H8611701A
Hella 8AH355463-311 Brake Hose, Rear
for between body and trailing arm
- 260mm long
- Replaces OE Ref: 7H0611775B
Hella 8AH355462-461 Brake Hose, Rear
for trailing arm to rear caliper
- 230mm long
- Replaces OE Ref: 7H0611776B
Important: Front brake sizes
VW Transporter T5 models can be fitted with two different front brake systems. The correct parts depend on the vehicle's option code:
- 2E3: vehicles use a front brake disc which measures 308x29.5mm
- 2E4: vehicles use a front brake disc which measures 333x32.5mm
Please check your vehicle’s option code, or physical brake size carefully before ordering.
Hella 8AN355793-271 Brake Caliper, Front Left
for vehicles with option code 2E3 only
- for 308x29.5mm front discs
- Replaces OE Ref: 7L6615123F
Hella 8AN355793-281 Brake Caliper, Front Right
for vehicles with option code 2E3 only
- for 308x29.5mm front discs
- Replaces OE Ref: 7L6615124F
Budweg 343424 Brake Caliper, Front Left
for vehicles with option code 2E4 only
- for 333x32.5mm front discs
- Replaces OE Ref: 7H0615123
Budweg 343425 Brake Caliper, Front Right
for vehicles with option code 2E4 only
- for 333x32.5mm front discs
- Replaces OE Ref: 7H0615124
Important: T32 rear brakes vary by build date
T32 (3.2T GVW) models with option code 0WR use one of two different rear brake systems:
- Up to 10 June 2007: vehicles use a combined disc-and-drum system. The handbrake operates separate shoes located inside the centre “drum” section of the rear brake disc.
- From 11 June 2007: vehicles use a conventional rear disc-brake system, as fitted to most other T5 models.
Please check your vehicle’s build date and brake arrangement carefully before ordering.

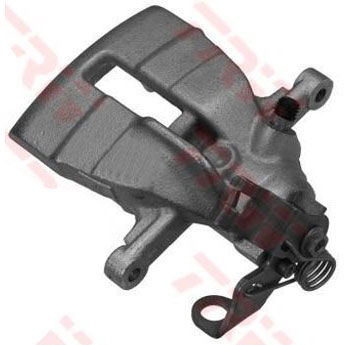

Hella 8AN355784-711 Brake Caliper Rear, Left
for T26, T28, T30 only
for T32 from 2007 to 2010 only
- for 294x22mm rear discs
- Replaces OE Ref: 7H0615423A

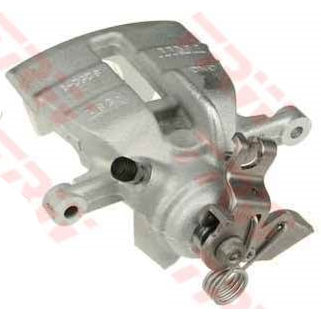

Hella 8AN355784-721 Brake Caliper Rear, Right
for T26, T28, T30 only
for T32 from 2007 to 2010 only
- for 294x22mm rear discs
- Replaces OE Ref: 7H0615424A
ABE CZH1602ABE Brake Caliper, Rear Left
for T32 from 2004 to 2007 only
- for 314x22mm rear discs
- Replaces OE Ref: 7H8615423
ABE CZH1603ABE Brake Caliper, Rear Right
for T32 from 2004 to 2007 only
- for 314x22mm rear discs
- Replaces OE Ref: 7H8615424
